F SERIES (RADIAL TYPE)

< Back

Centrifugal blowers for industrial use

Elmo Rietschle offers a broad portfolio of single and multistage centrifugal blowers for vacuum and pressure operation.
The applications of Radial blowers are mainly used in the packaging and paper industries, with the smaller units are suitable for extracting dust with fine material such as paper powder and powdered solids.
Benefits at a glance

•    Cast housing and impellers
•    Robust and economical
•    lubrication of bearings
•    Quiet and vibration-free running
•    Reliable and durable
•    Speed control via frequency converter possible



Product List

Click for download product's file

VACUUM PUMPS F-CEVF (29)

Volume flow
up to 5 m³/min
up to 176.5 cfm

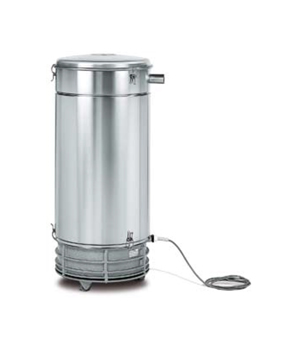

Multi-stage radial blowers for vacuum operation complete with filter and dust separator. The models F-CEVF (29) are suitable for removing paper powder and dust. Capacities up to 5 m³/min (up to 176.5 cfm). Total pressure difference up to 90 mbar. Motors comply with DIN EN 60034 and have IP 54 protection and insulation class F.



VACUUM PUMPS F-CEVF (31)

Volume flow
4.5 to 7.8 m³/min
157.6 to 275.3 cfm

Multi-stage radial blowers for vacuum operation complete with high filter vessel and collection bin. The models F-CEVF (31) are suitable for removing paper and film strips and pieces. Capacities from 4.5 to 7.8 m³/min (157.6 to 275.3 cfm). Total pressure difference up to 70 mbar. Motors comply with DIN EN 60034 and have IP 54 protection and insulation class F.

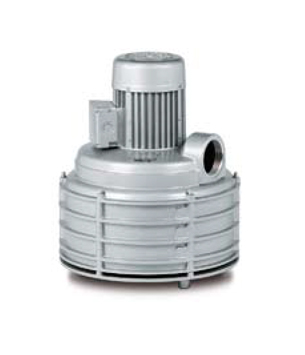

VACUUM PUMPS F-CEV-S

Volume flow
3.2 to 8.9 m³/min
111.8 to 314.1 cfm

Radial blowers with three to five stages for vacuum and pressure operation. Capacities from 3.2 to 8.9 m³/min (111.8 to 314.1 cfm) and vacuum up to 115 mbar. Compact design, low temperature even when throttled. Fast start-up due to lightweight impellers. Motors comply with DIN EN 60034 and have IP 54 protection and insulation class F.



VACUUM PUMPS F-RER, F-REL

Volume flow
4.9 to 57 m³/min
172.9 to 2,011.8 cfm

Radial blowers for vacuum operation with capacities from 4.9 to 57 m³/min (172.9 to 2,011.8 cfm) and vacuum up to 95.5 mbar. Solid lightweight construction. Low Vibration and quiet running. The bearings are greased for life and need no servicing. Motors comply with DIN EN 60034 and have IP 54 protection and insulation class F.



COMPRESSORS F-CEV-D

Volume flow
2.2 to 9.3 m³/min
78.8 to 327.1 cfm

Radial blowers with three to five stages for pressure operation. Capacities 2.2 to 9.3 m³/min (78.8 to 327.1) and pressure up to 125 mbar. Compact design, low temperature even when throttled. Fast start-up due to lightweight impellers. Motors comply with DIN EN 60034 and have IP 54 protection and insulation class F.



COMPRESSORS F-RER, F-REL

Volume flow
4.9 to 57 m³/min
172.9 to 2,011.8 cfm

Radial blowers for pressure operation with capacities ranging 4.9 to 57 m³/min (172.9 to 2,011.8) and pressure up to 99,5 mbar. Solid lightweight construction. Vibration free and quiet running. The bearings are greased for life and need no servicing. Motors comply with DIN EN 60034 and have IP 54 protection and insulation class F.
