Radial blowers with aluminium housing
These product groups that have been proven and tested for decades are characterised by arobust and durable housing made from aluminium. Thanks to the wide performance range, it offersa very wide scope of applications. There is a wide range of accessories available in order to equipthe blowers according to indiv

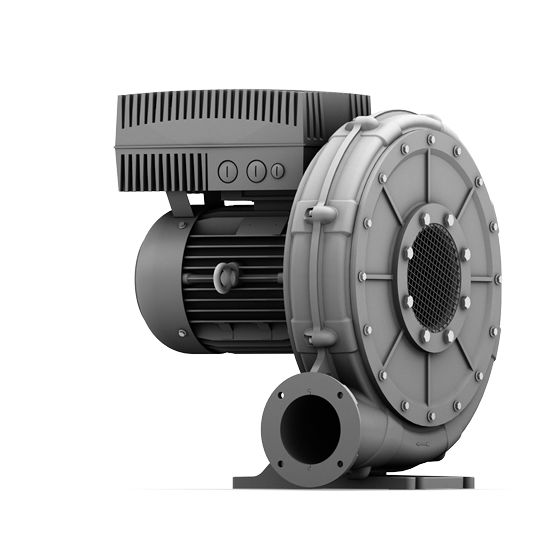

Up to 40 m³/min and 21,200 Pa. Wear-free, direct drive via offset frequency converter (FU). Accelerates up to 135 Hz (approx. 8,000 rpm). Housing made of cast aluminium, impellers bent backwards and made out of high-tensile QSTE steel, optionally with automatic after-lubrication mechanism, largely corrosion-resistant.

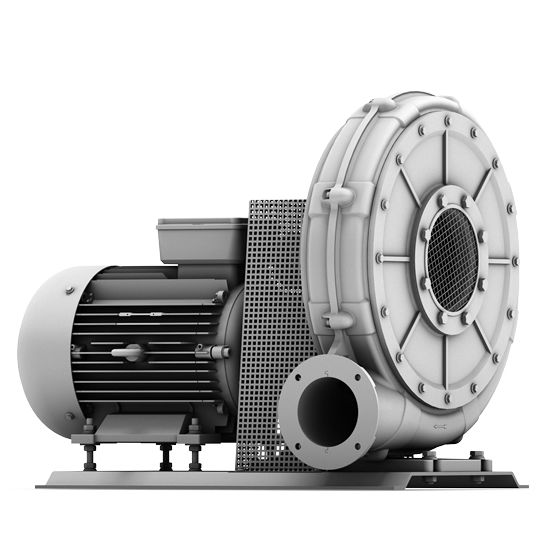

Up to 100 m³/min and 17,300 Pa. Wear-free, direct drive via offset (FU) or mounted (FUK) frequency converter. Higher rotation up to 105 Hz (approx. 6,200 rpm). Housing made of cast aluminium, impellers primarily bent backwards and made of aluminium, mostly corrosion-resistant.

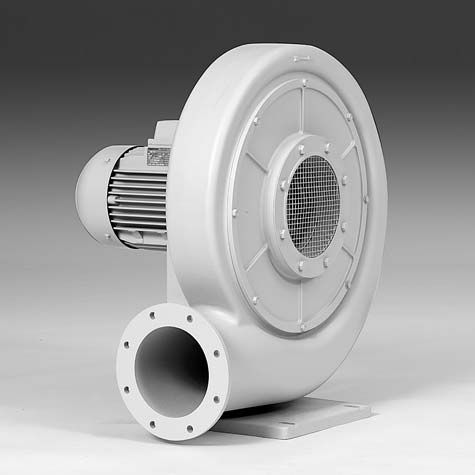

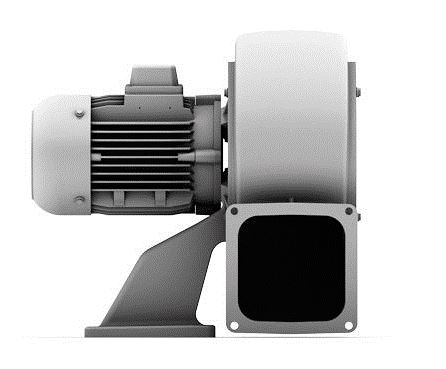

Up to 95 m³/min and 2,200 Pa. Housing made of cast aluminium, drum impellers bent forward and made of galvanized sheet steel, mostly corrosion-resistant.
