R-SERIES (ROOTS TYPE)

< Back

Rotary Lobe Blowers

These compact rotary lobe blowers belong to the group of dry running positive displacement pumps. This means that there is no need for oil or grease in the compression chamber. Only gear box and bearings, which are separated from the pumping chamber, are oil lubricated. Two non-contacting triple lobed rotary lobe rotors rotate against each other in the compression room. The triple lobed rotors avoid pulsation problems. The blowers are customized to cater for the varying demands of our customers‘ applications.

Advantages at a glance:
* Robust and economical
* Dry running
* Modular design
* Available as single aggregates
* Available as individually engineered pump sets
* Frequency control available



Product List

Click for download product's file

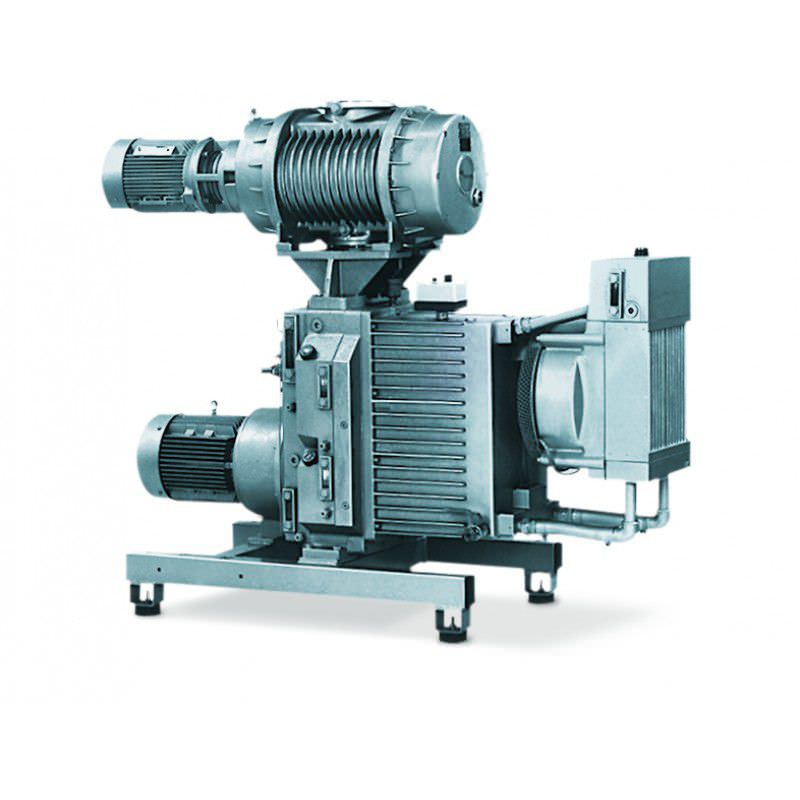

VACUUM PUMPS R-VPA

Volume flow
430 to 3,960 m³/hr
252.9 to 2,329.4 cfm

Pump sets consisting of V-VWZ and rotary lobe pumps. They combine the advantages of fresh oil lubricated vacuum pumps with the high suction capacity of a rotary lobe pump.
Primarily used for generating fine vacuum in general industrial applications and for chemical processes.*

* ATEX compliant pump stands available.

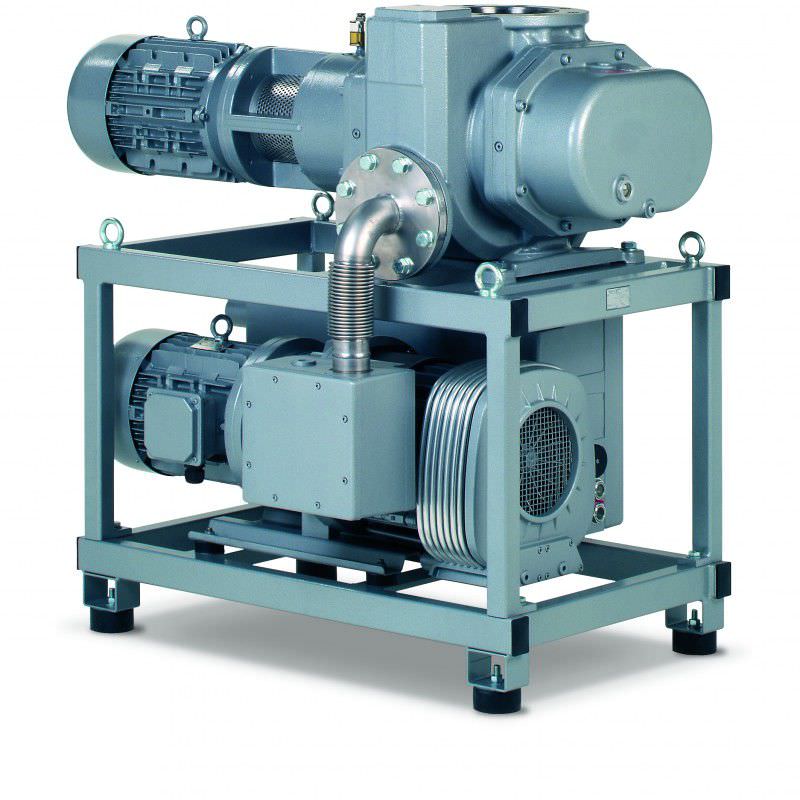

VACUUM PUMPS R-VPR

Volume flow
485 to 2,752 m³/hr
285.3 to 1,618.8 cfm

A pump set consisting of V-VC in combination with rotary lobe vacuum pump. Primarily used for production of fine vacuum for general industrial applications. Ultimate vacuum until 0,01 mbar (abs.) possible.



VACUUM PUMPS R-VWP

Volume flow
485 to 2,752 m³/hr
285.3 to 1,618.8 cfm

Contact-free operating two (R-WVB 25) or three (R-WVB 120 - 8,300) lobed rotary blower designed for use with vacuum operations to a maximum 0.5 bar (abs.). R-WVB (01): Base unit with bare shaft extension, no motor. R-WVB (30): Compact unit. R-WVB (70): Compact unit with an acoustic enclosure. Low noise level and low pulsation, high efficiency due to optimal speed, stable design, easy to service.

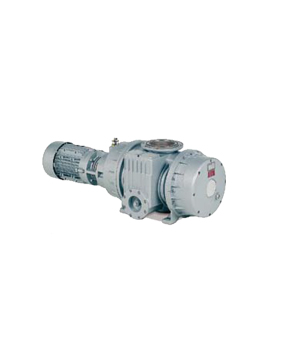

VACUUM PUMPS R-WVB

Volume flow
22 to 8,580 m³/hr
12.9 to 5,049.4 cfm

Contact-free operating two (R-WVB 25) or three (R-WVB 120 – 8,300) lobed rotary blower designed for use with vacuum operations up to a maximum of 0.5 bar (abs.). The variable capacity blowers cover a range from 22 to 8,580 m³/hr (12.9 to 5,049.4 cfm) in 16 sizes. Low noise level and low pulsation, high efficiency due to optimal speed, stable design. easy to service.



VACUUM PUMPS R-WPB

Volume flow
20 to 7,964 m³/hr
11.8 to 4,684.7 cfm

Contact-free operating two (R-WPB 25) or three (R-WPB 120 - 8300) lobed rotary blower has been designed for use with pressure operations to a maximum 1 bar (abs.). The variable capacity blowers cover a range from maximum 20 to 7,964 m³/hr (11.8 to 4,684.7 cfm) in 18 sizes. Low noise level and low pulsation, high efficiency thanks to optimal speed, stable design, easy to service.
